Parking systems

Parking system design is generally identical to freight lift design; the difference is only in lift controls.

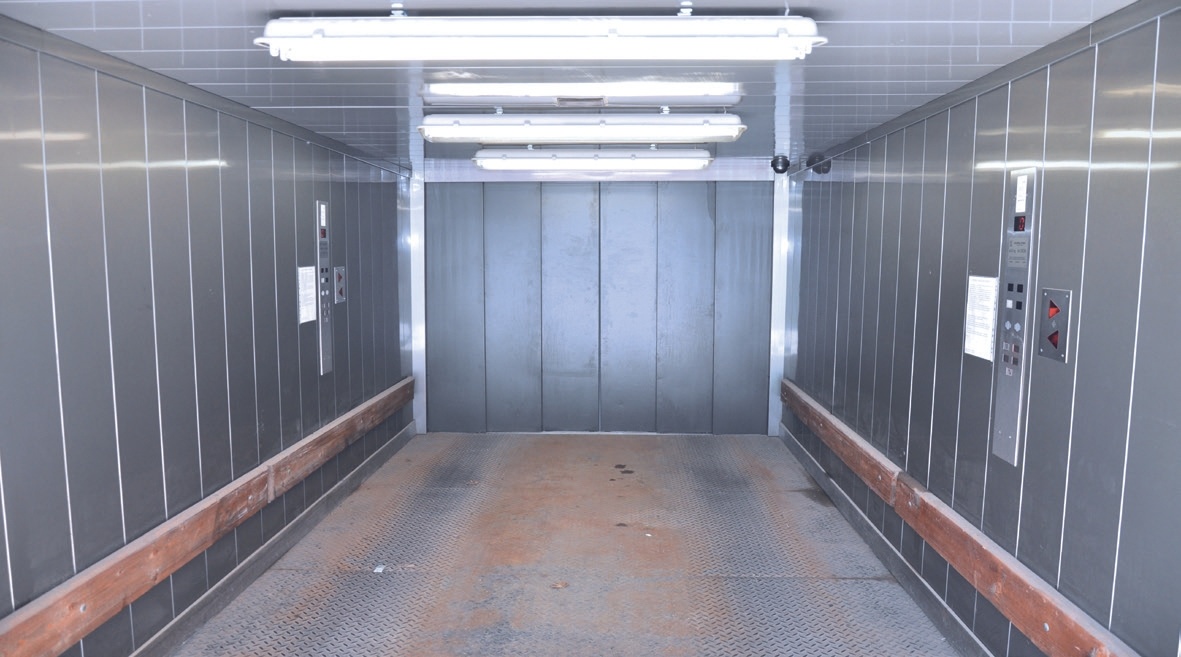

Cabin wall surface finish and standard equipment

Parking system cabins are standardly manufactured using galvanized plated coated with decorative pattern made of the LM-type PVC, with the stainless steel imitation or in a version made of stainless steel (INOX). It is a lamella wall system with vertical arrangement, or, upon the request, the surface can be without lamella joints. The parking system cabin is equipped with reinforced walls and side bumpers to prevent the cabin walls against possible impact of the transported vehicle. Additional equipment includes the camera system and the remote lift calling.

Cabin ceiling

Cabin ceiling is made of LA or INOX materials, only with LED lights.

Cabin floor

Cabin floor is designed for a high load in a version made of industrial chequer plate, stainless plate, or aluminium plate.

Cabin operation panels and landing operation panels

COPs and LOPs are the same as in passenger lifts of the CLS series in the INOX version and with a 7-segment display, or an LCD display on each station. In the cabin there are 2 COPs located so that they are accessible for a driver after opening a car window.

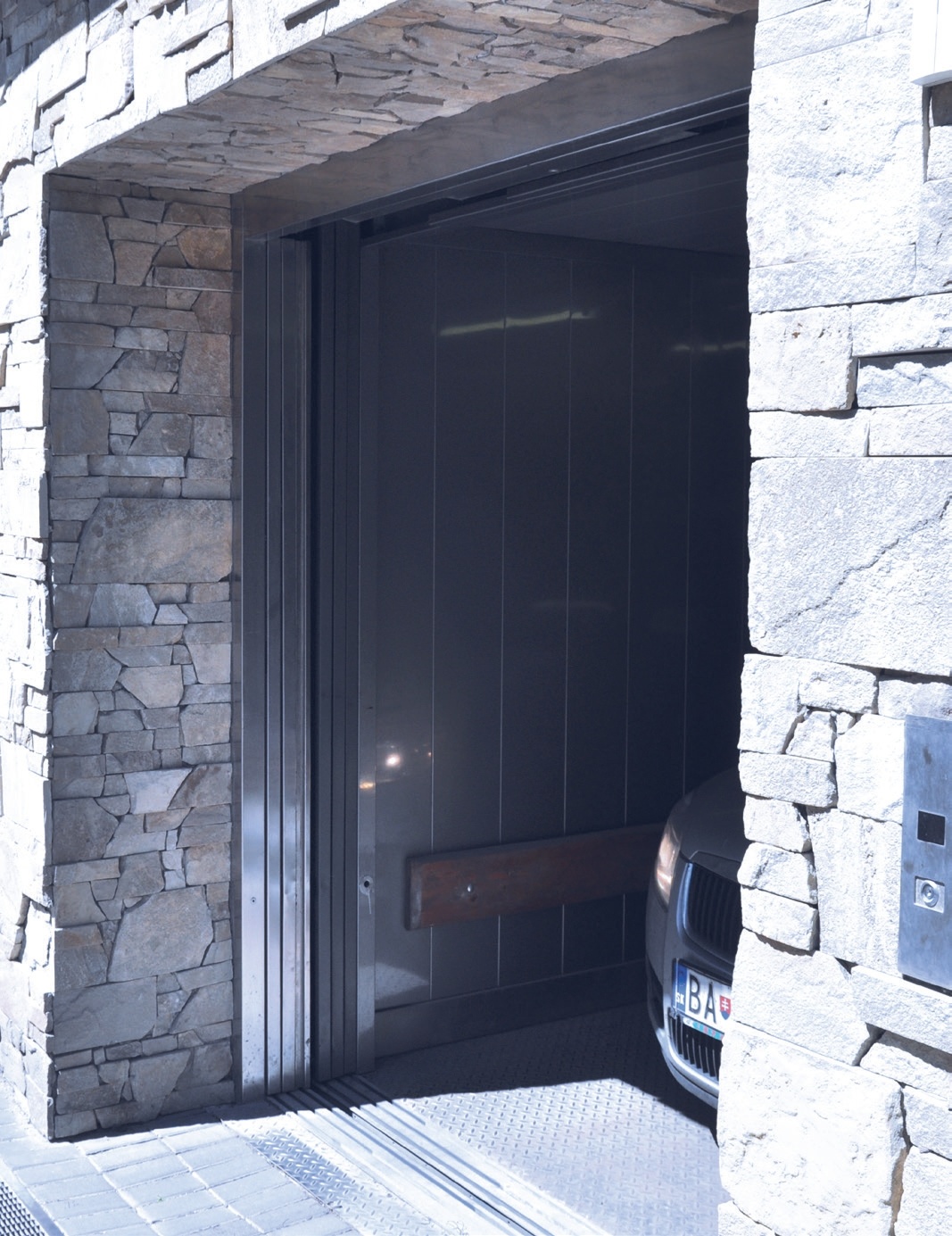

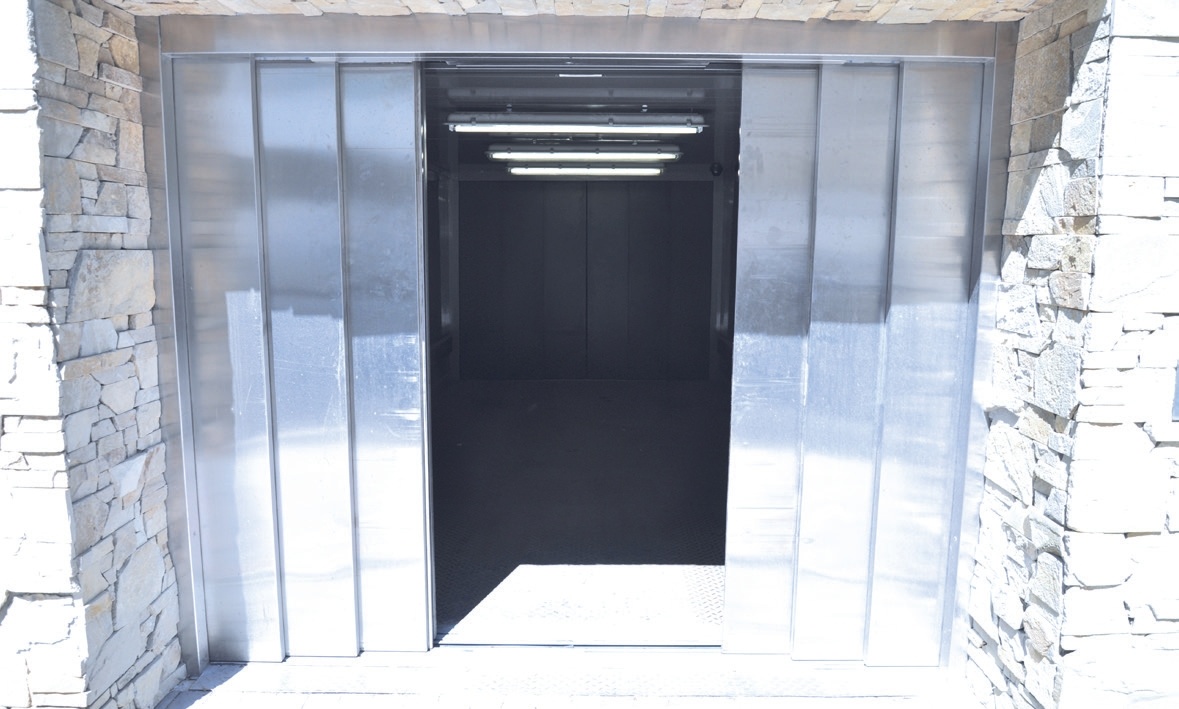

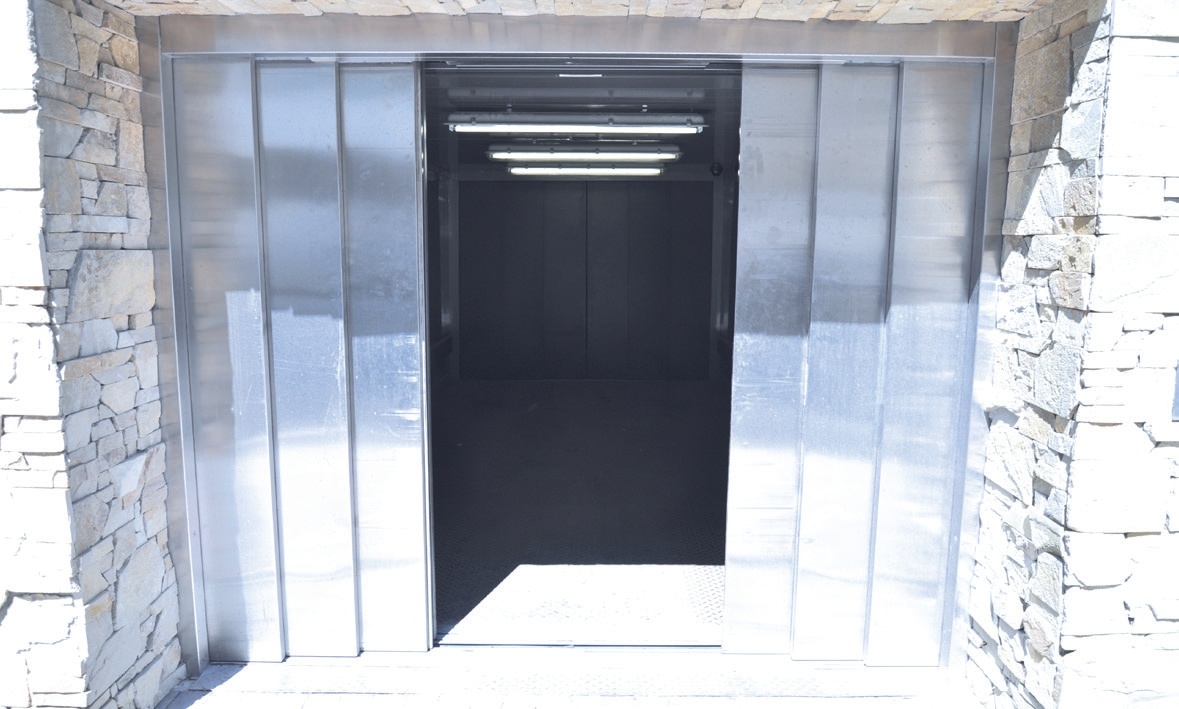

Landing doors and cabin doors

Landing doors and cabin doors are fully automatic, controlled through the internal control panel and the VVVF frequency regulation

Door surface finish is made of stainless steel (INOX).

The 3D equipment includes a full-area light barrier which, after the door opens, detects a vehicle standing in front of the door or approaching the lift. In this case the door is not closed and the traffic lights inform a driver that the lift is ready and a vehicle can enter the lift.

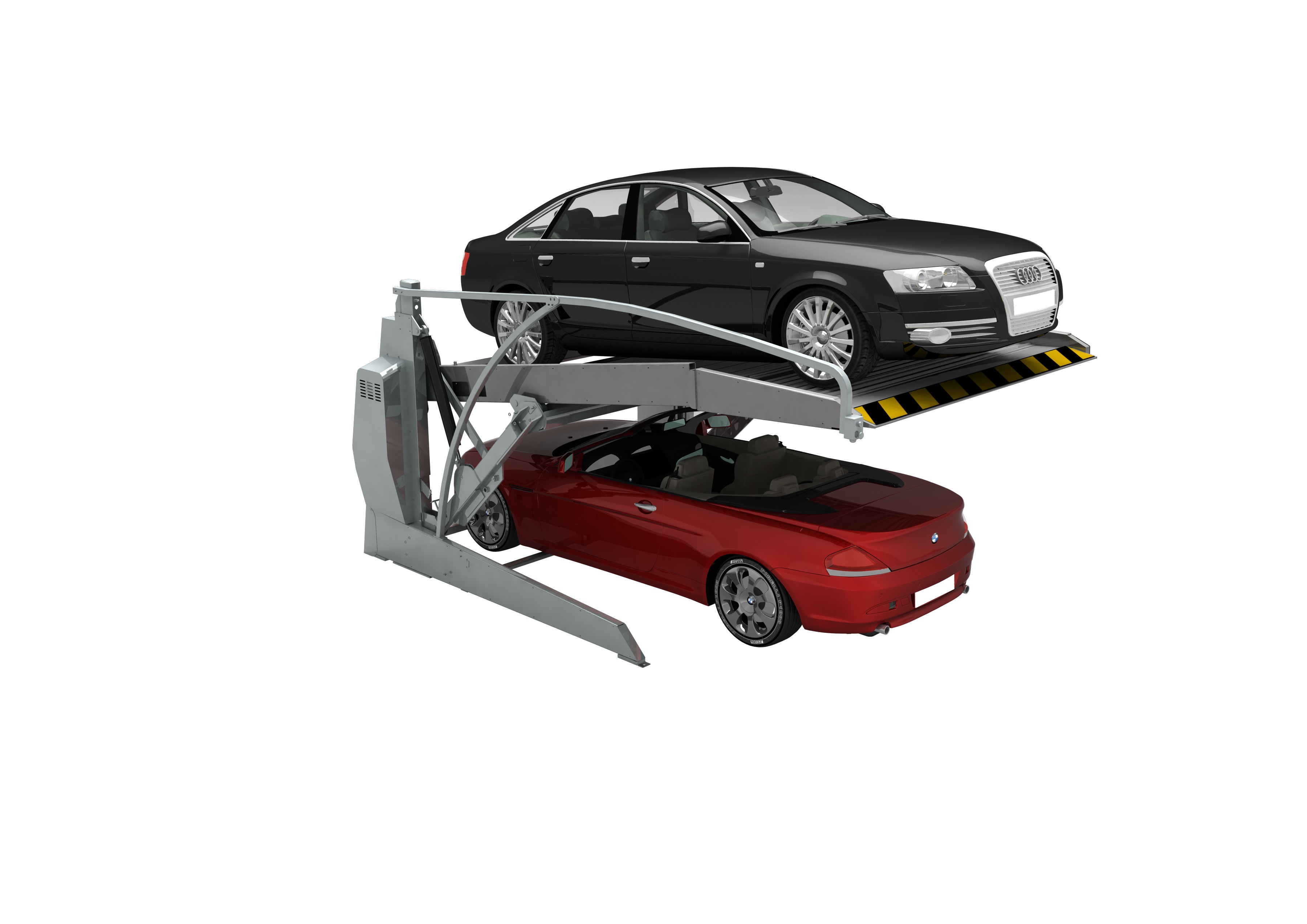

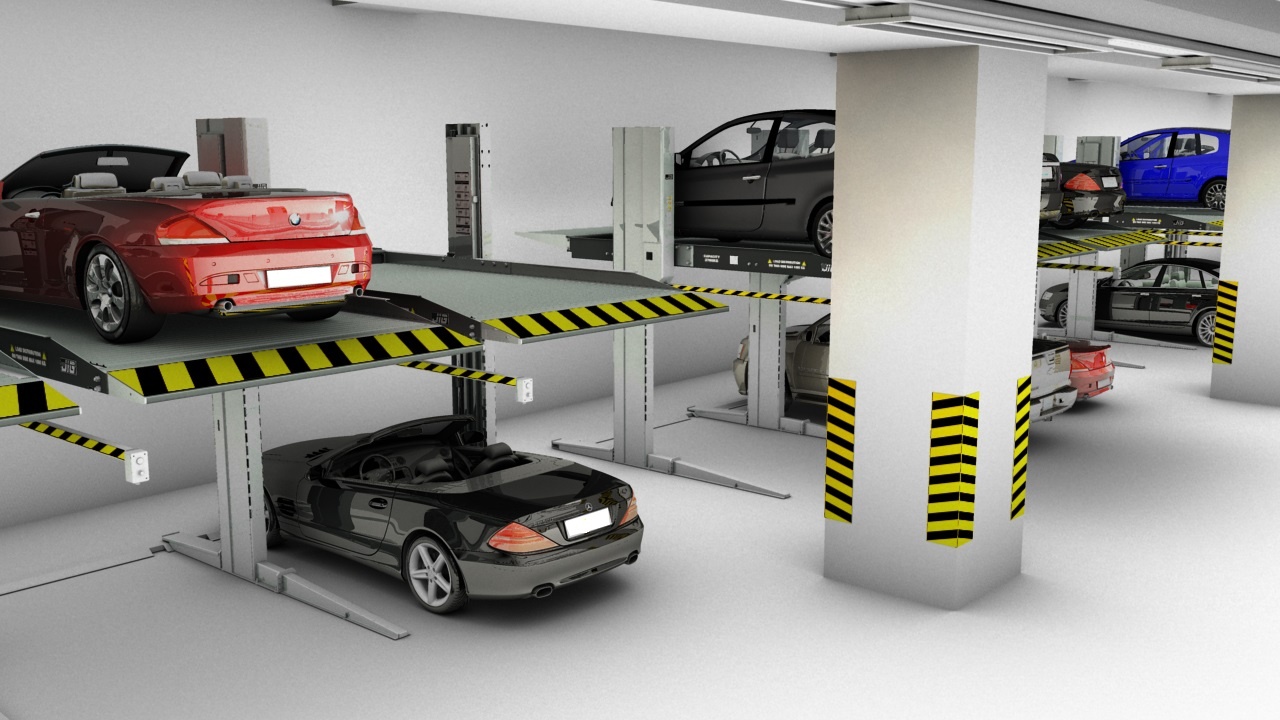

Parking platforms and parking systems.
