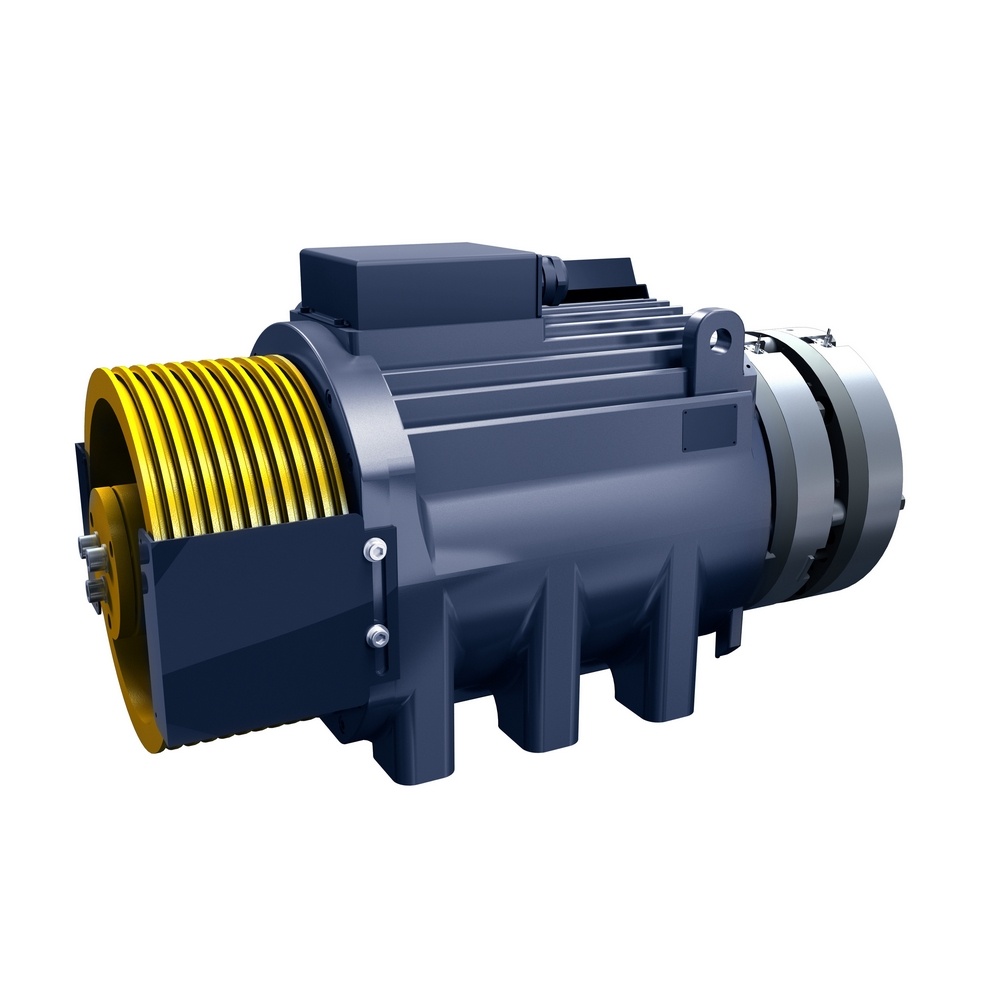

Ziehl-Abegg informs: ZETATOP the most successful gearless drives

Gearless drives of the ZETATOP series offer the best and the most complex scope of lift drives for all types of installations – for lifts with machine rooms as well as lifts without machine rooms. ZETATOP is the gearless synchronous motor with permanent magnet with the lifting capacity from 160 kg to 6,500 kg. Thanks to a wide spectrum of constructional sizes, traction disc diameters, and roping method, the ZETATOP series has become the most successful gearless lift drive on the European market!

Most frequently used drives of constructional sizes SM160 and SM200

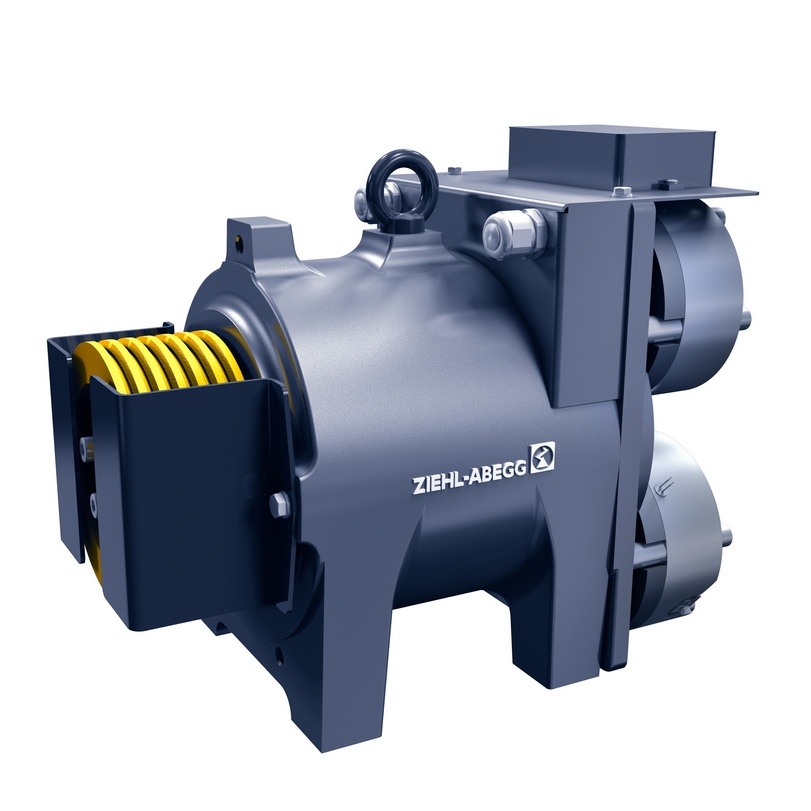

SM160

Lifting capacity up to 500 kg with 1:1 suspension, lifting capacity up to 1,000 kg with 2:1 suspension
Cable wheel diameter ≥ 160 mm, for ropes with diameter ≥ 4.0 mm
Constructional width < 247 mm
Unique solution for smallest lift shafts with the minimum shaft head
Heidenhain ECN1313 EnDat Encoder
Motor cable supplied together with the drive
Typical installation: 320 kg, 1:1, cable wheel D210, ropes 5x6.0 mm, machine room

Optional:

Heidenhain ECN1313-SSI Encoder e.g. ERN1387
Mechanical manual braking (for size SM160.40A)
Encoder cable with various lengths and for various frequency converters
Motor cable length 5m, 10m or 15m

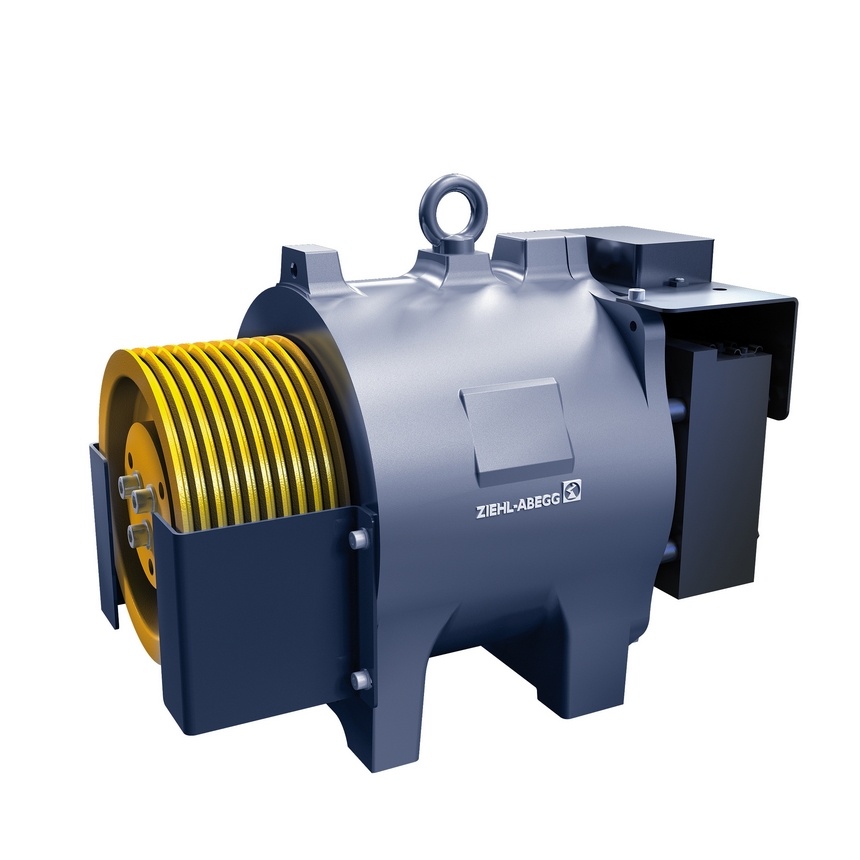

SM200

Lifting capacity up to 630 kg with 1:1 suspension, lifting capacity up to 1,600 kg with 2:1 suspension
Cable wheel diameter from 160 mm to 500 mm, for ropes from 4.0 mm to 12 mm
Constructional width ≤ 320 mm
Heidenhain ECN1313 EnDat Encoder
Motor cable supplied together with the drive (SM200.15C, SM200.20C, SM200.30C)
Typical installation: 450kg, 1:1, cable wheel D240, ropes 6x6.0 mm, machine room

Optional:

Heidenhain ECN1313-SSI Encoder e.g. ERN1387
Mechanical manual braking
Encoder cable with various lengths and for various frequency converters
Motor cable length 5m, 10m or 15m

General characteristics of ZETATOP drives:

Wide range of constructional sizes, easy to find ideal drive size for your installation
Freely available professional software ZETALIFT for suggesting a suitable Ziehl-Abegg drive for lift installation
Speed range from 0.5 m/s to 4 m/s
Available diameters of traction discs from 160 mm to 600 mm (for rope diameters from 4 mm to 14 mm and for plastic-coated ropes)
Certified brakes against uncontrolled travel up
Type test certificate for brakes ESV pursuant to EN81-1/A3
All documentation available also in the Czech language
The most silent and the most efficient drive on the market
„Made in Germany“, complete manufacture in Germany, the highest reachable quality
Manufacture of gearless drives since 1997, the longest-lasting experience out of all manufacturers
